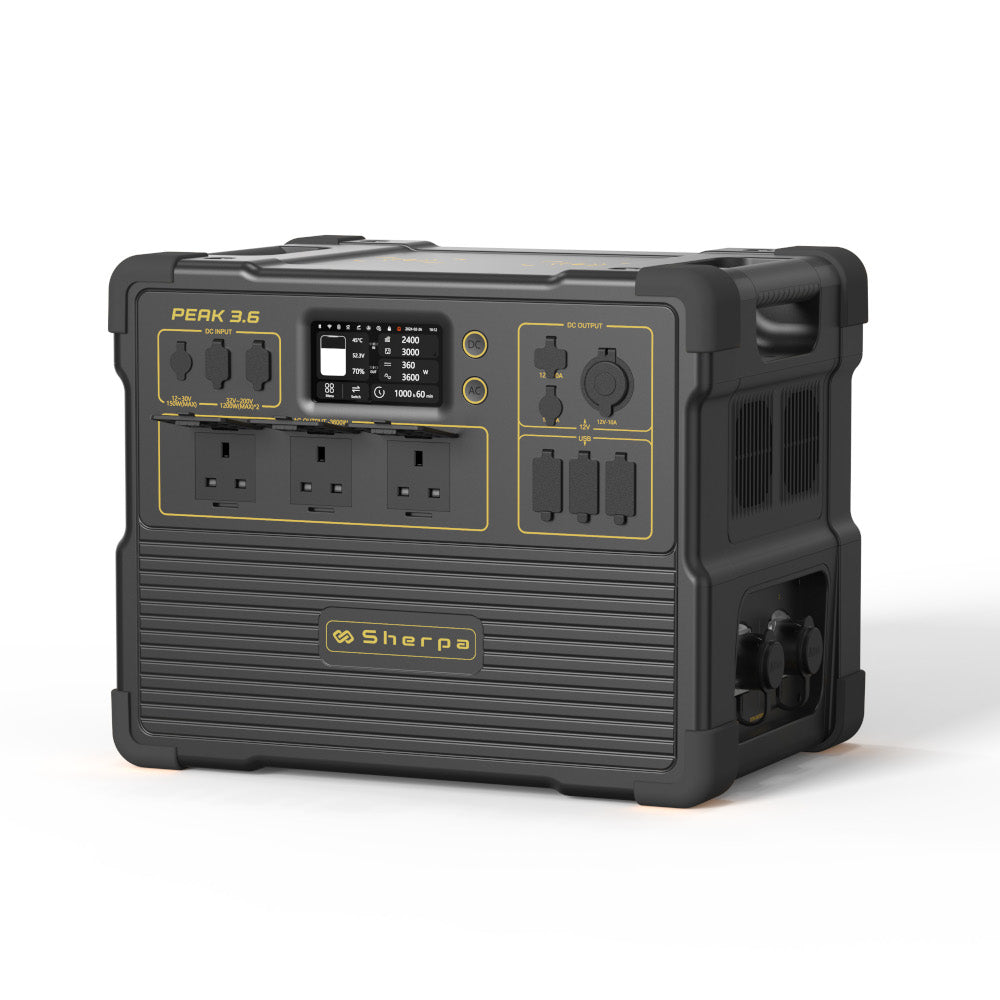

Sherpa PEAK 3.6 - Available September 25th

The PEAK 3.6 is a user-friendly, high-performance Portable Power Station that revolutionises power accessibility. Equipped to accept solar and hybrid renewable inputs, you can keep it on charge while delivering clean, smooth power to your essential appliances. Crafted with durability and performance in mind, the PEAK 3.6 is built to withstand both recreational and professional use. The sturdy handles provide comfortable portability, while the rugged exterior and solid construction protect the unit from certain impacts and scratches. Its solar, DC and input goes beyond previous capabilities, offering three inputs that can be combined to charge faster than ever from renewable energy.
Battery information

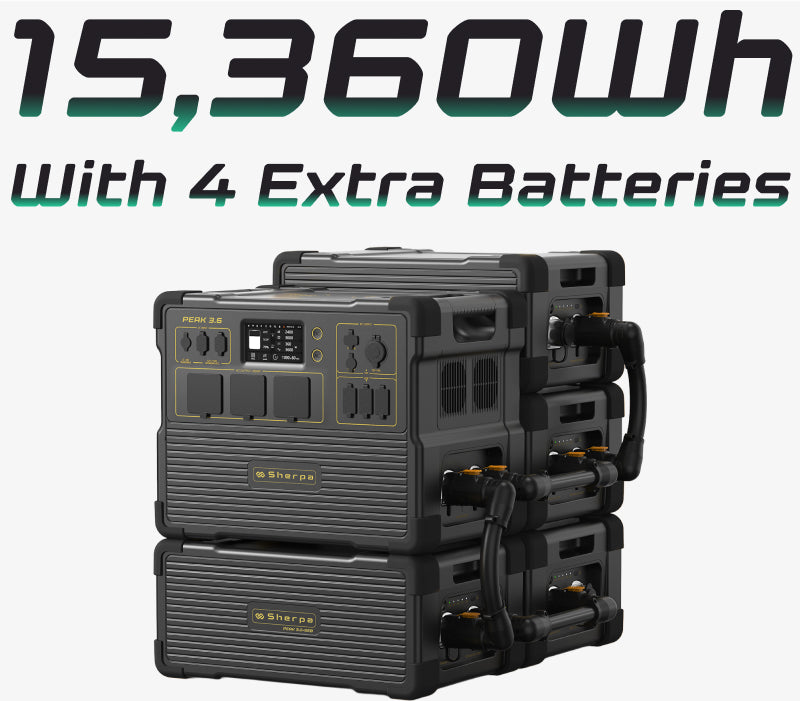

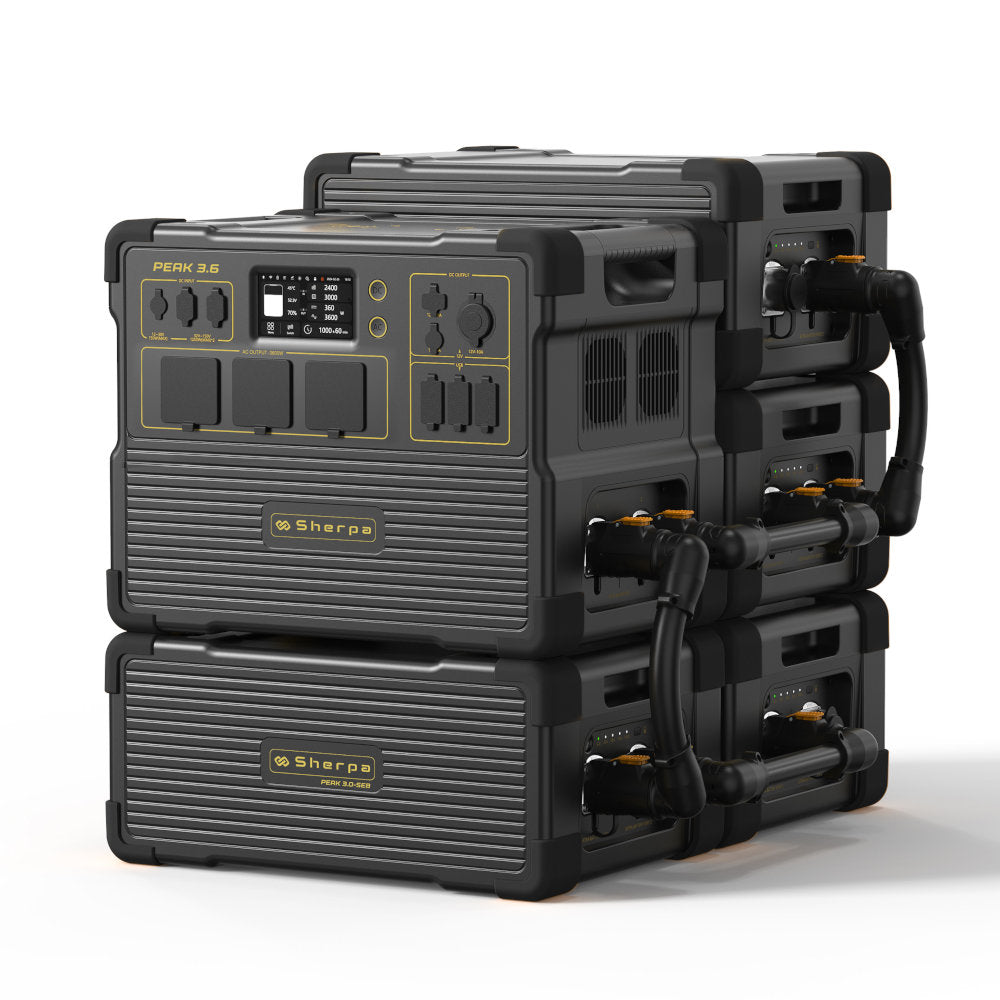

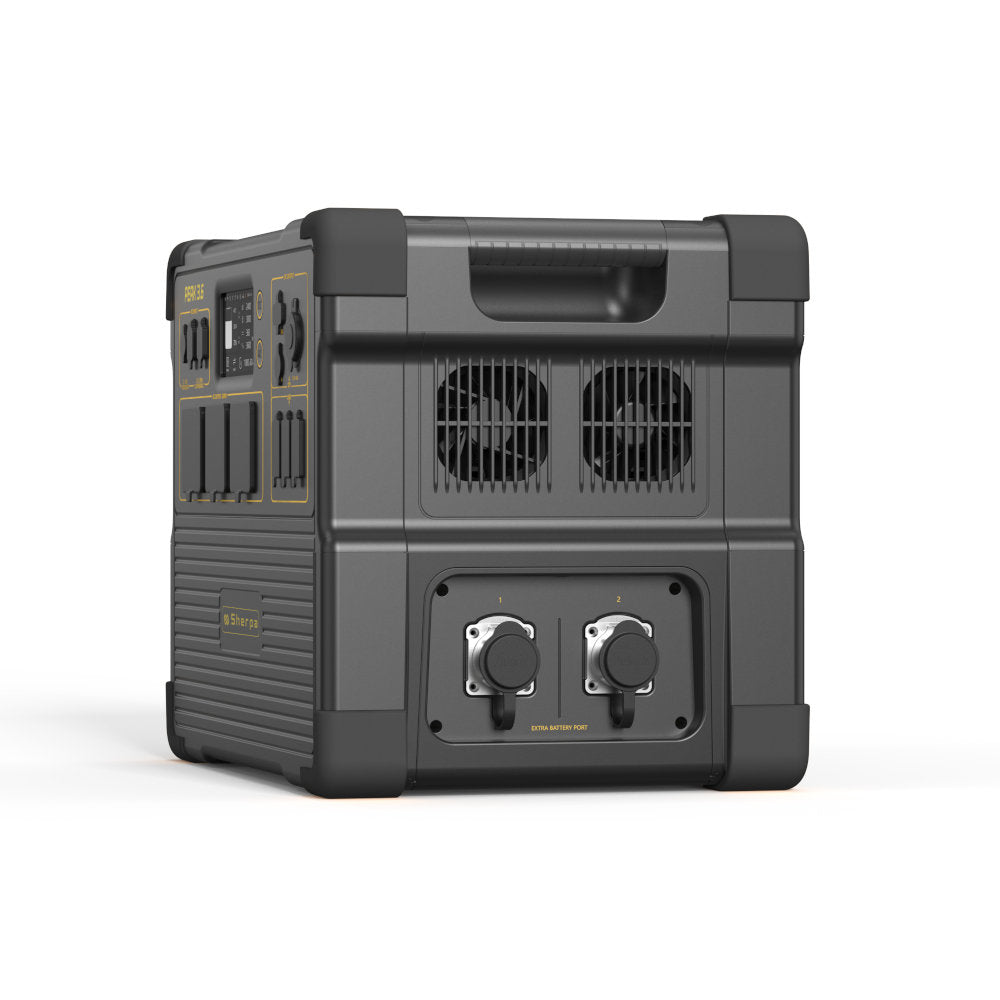

The PEAK 3.6 Portable Power Station incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 3072Wh, expandable up to 15,360Wh by linking four PEAK 3.0-EB extra batteries, this system boasts a significant energy reserve, offering uninterrupted power supply for extended periods. Its in-built power management means you can simultaneously charge from multiple sources while using your connected devices. With safety in mind, the PEAK 3.6 Battery Management System (BMS) has multiple protection features built-in, to prevent overheating, overload, and short-circuit. These limit excessive power draw, overcharge and deep discharge to preserve the longevity of the battery. The PEAK 3.6 is equipped with a pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has a Backup Power Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.
Output

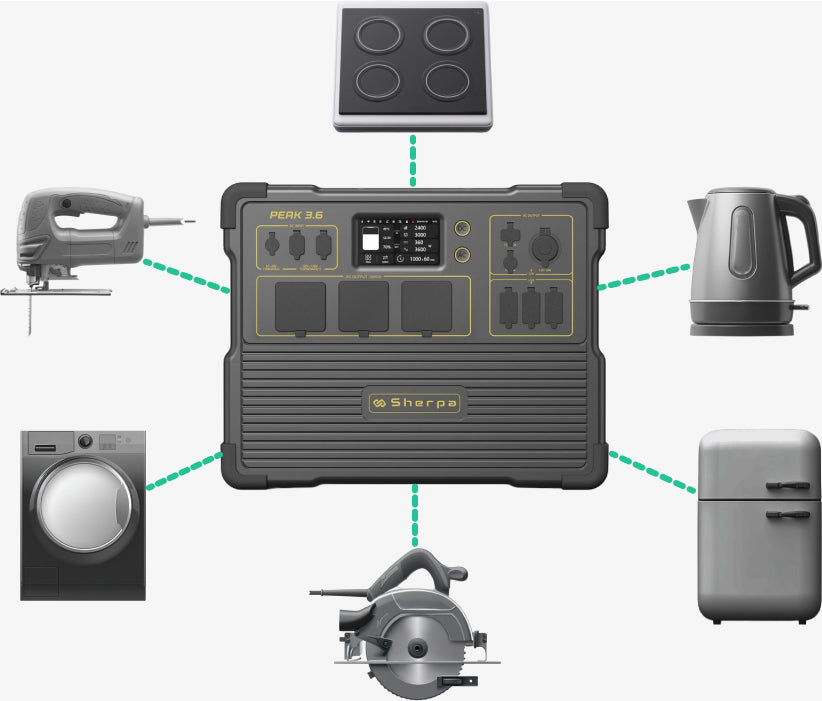

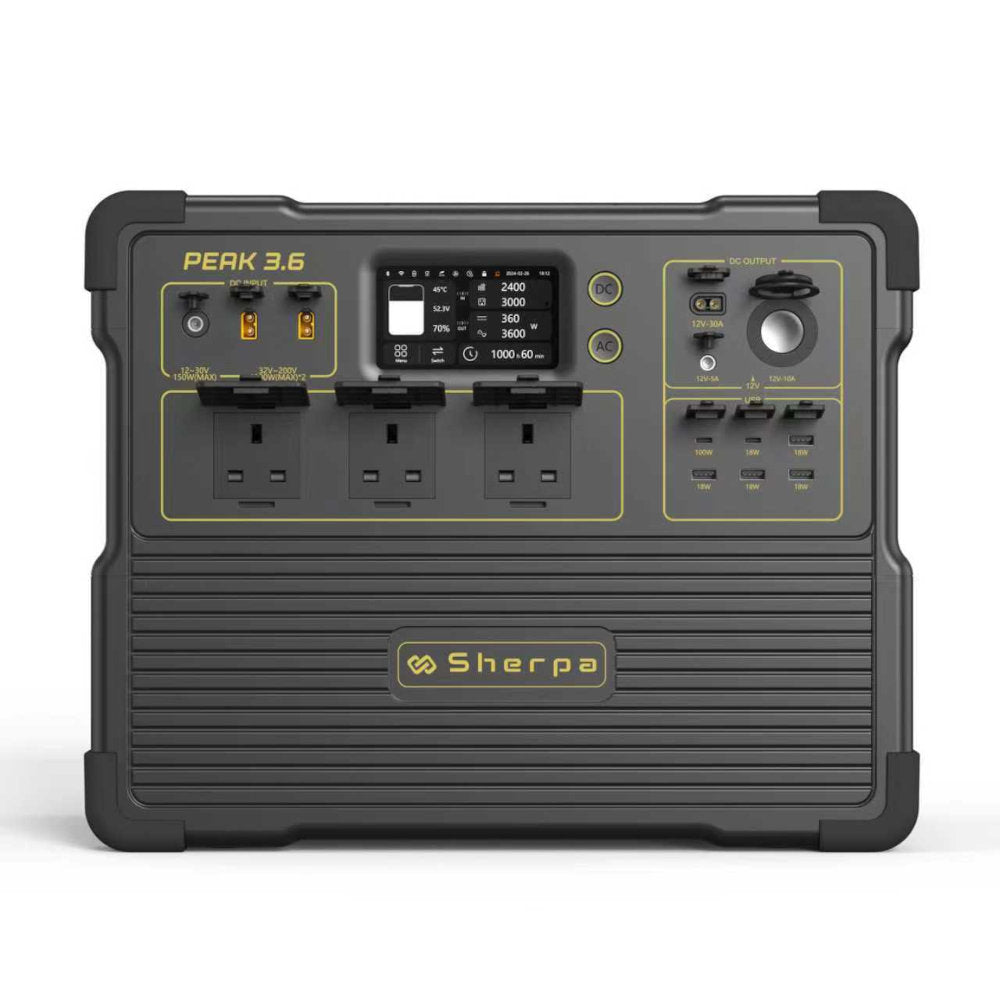

Boasting 12 power output ports, the PEAK 3.6 enables you to power multiple devices
simultaneously:
AC OUTPUT: AC Sockets x 3 (220V-240V/50Hz) perfect for running high-power mains appliances
DC OUTPUT: The panels comprise multiple smart-charge ports that self-regulate the power your
devices need: USB-A Port x 4, USB-C Port x 2, DC 5525 Port x 1, Wireless Charging Pad, Aux Car Port x
1 and XT60 Output x 1, allowing you to charge and power smartphones, cameras, laptops, fridges,
diesel heaters, and other DC powered devices..
Charging
The PEAK 3.6 offers advanced charging capabilities, providing flexible options to recharge the unit quickly:
AC Charging: approximately 1 hour 40 minutes from 0% to 100% state of charge from a standard wall
outlet.
Solar and hybrid Renewable Charging: approximately 1h 20 min from 0% to 100% at maximum input.
The high-efficiency MPPT charge controller converts solar, wind (DC), or hydroelectric (DC) input,
allowing you to go completely off-grid and enjoy the planet's free energy.
Onboard Charging: approximately 32 hours from 0% to 100% charge using your vehicle's 12V socket
while travelling around. Sherpa Power also offers a faster method via the Charge-500 Smart
Charger (sold separately) that can fully charge the PEAK 3.6 in 6 hours while the vehicle is
running.
General Information
The PEAK 3.6 features a touchscreen that provides real-time information about battery level,
power input/output, and charging status. Furthermore, you have the ability to set more parameters
than ever before allowing for greater control of your energy. The PEAK 3.6 is also APP compatible
(Sherpa Power app) via Bluetooth or Wi-Fi (available for Apple & Android devices), so you can even monitor and control your power station remotely.
The PEAK 3.6 has an IP rating of 20, it is shockproof and built with fireproof materials.
The PEAK 3.6 has a standard 5-year Warranty for peace of mind and 10-plus years lifespan.
Dimensions: L445/W307/H305 mm
Weight: 36Kg
Applications
Leisure and Hobby (campervan, camping, glamping, fishing, off-grid events, photography, marine)
Professional Use (onboard power solution for commercial vehicles, DIY, skilled trades, film industry,
contractors, medical equipment)
Home Back-up Solution (fridge, freezer, TV, devices, Wi-Fi, microwave, washing machine, air fryer)

What's in the Box?
PEAK 3.6
AC Charging Cable
Car Charging Cable
MC4 Solar Charging Cable (MC4-XT60)
MC4 Solar Parallel Dual Charging Cable (MC4- 2 x XT60)
Slotted screwdriver
Accessory Pouch
User Manual
