Sherpa PEAK 1.8

Name: Sherpa PEAK 1.8
Brand: Sherpa Power
Price: 599.0 GBP
Availability: InStock

£599.00

£699.00

Save £100.00

Quantity:

5 Year Warranty Included!

Your purchase is completely protected by our 5 year warranty.

Order today to get yours by: ~ - ~

Use any of these payment methods:

Key Features

🔋 Battery
1024Wh ~ 80Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

⚡ Output (AC)
1800W Continuous Pure Sine Wave
(Surge: 3600W)

💡 Output (DC)
20A - 280W Max

🔌 Input (AC)
220V-240V 900W Max

Input (🔆 Solar/ ⚡🔌 DC )
11V-60V, 600W Max

⏳ Charge Time
Mains (AC): 1.2 hours
Solar / DC: 1.7 hours (in ideal conditions)

🛡️ Warranty 5 Year Standard Warranty

⚖ Weight 13.5kg

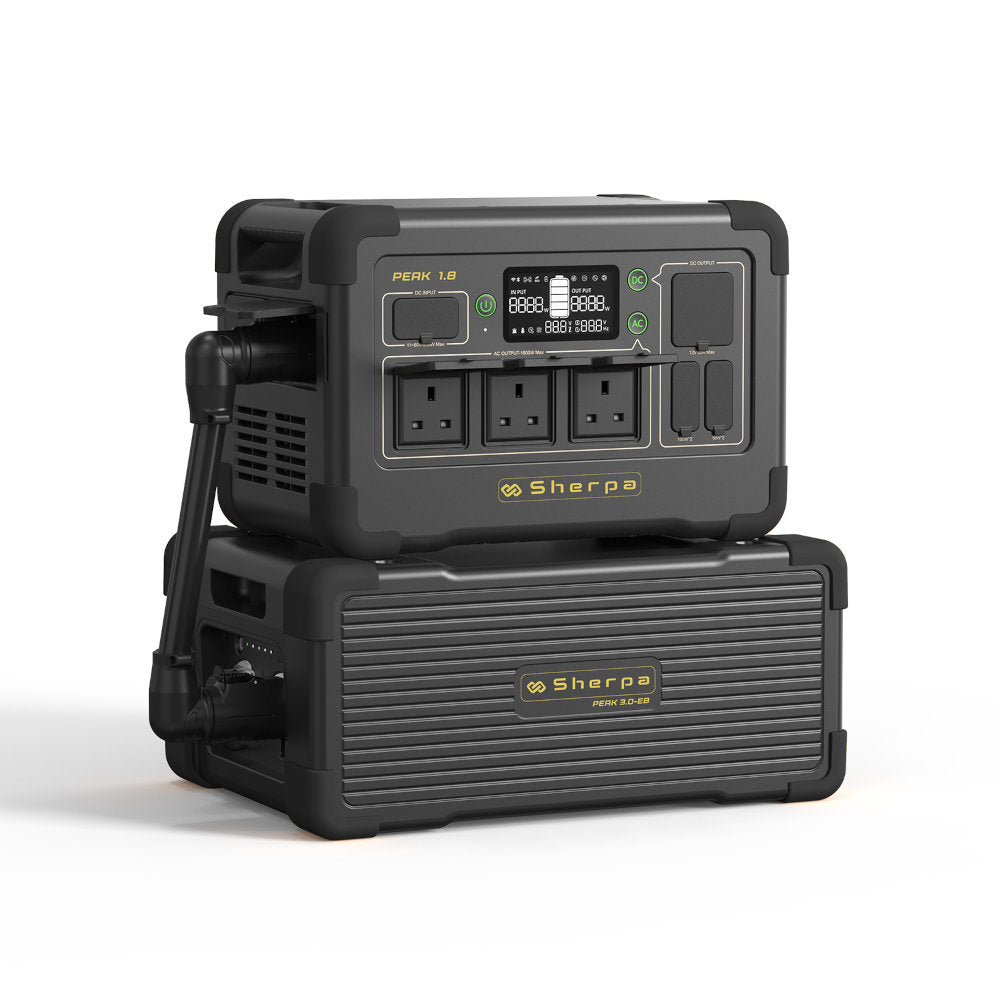

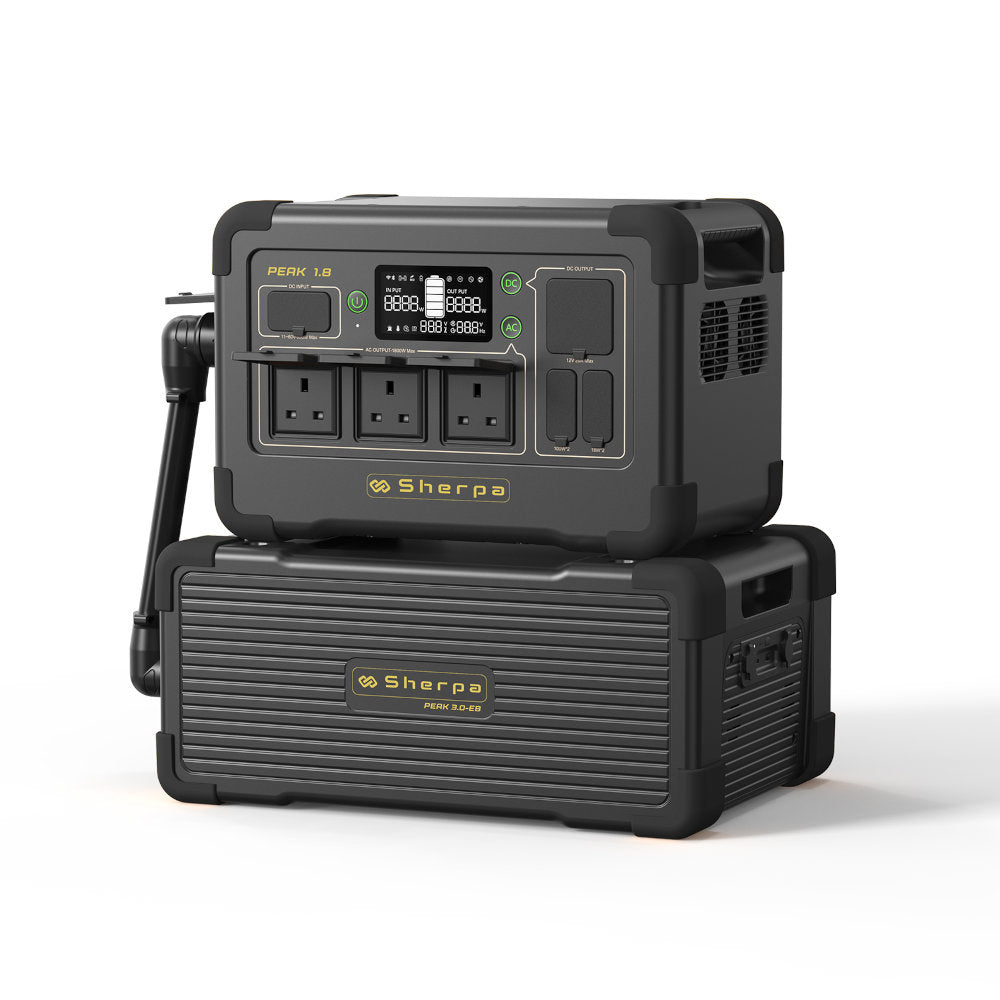

🔗 Expandable Capacity
Up to 4096Wh ~ 320Ah (based on a 12.8V calculation)

Sherpa PEAK 1.8

£599.00

£699.00

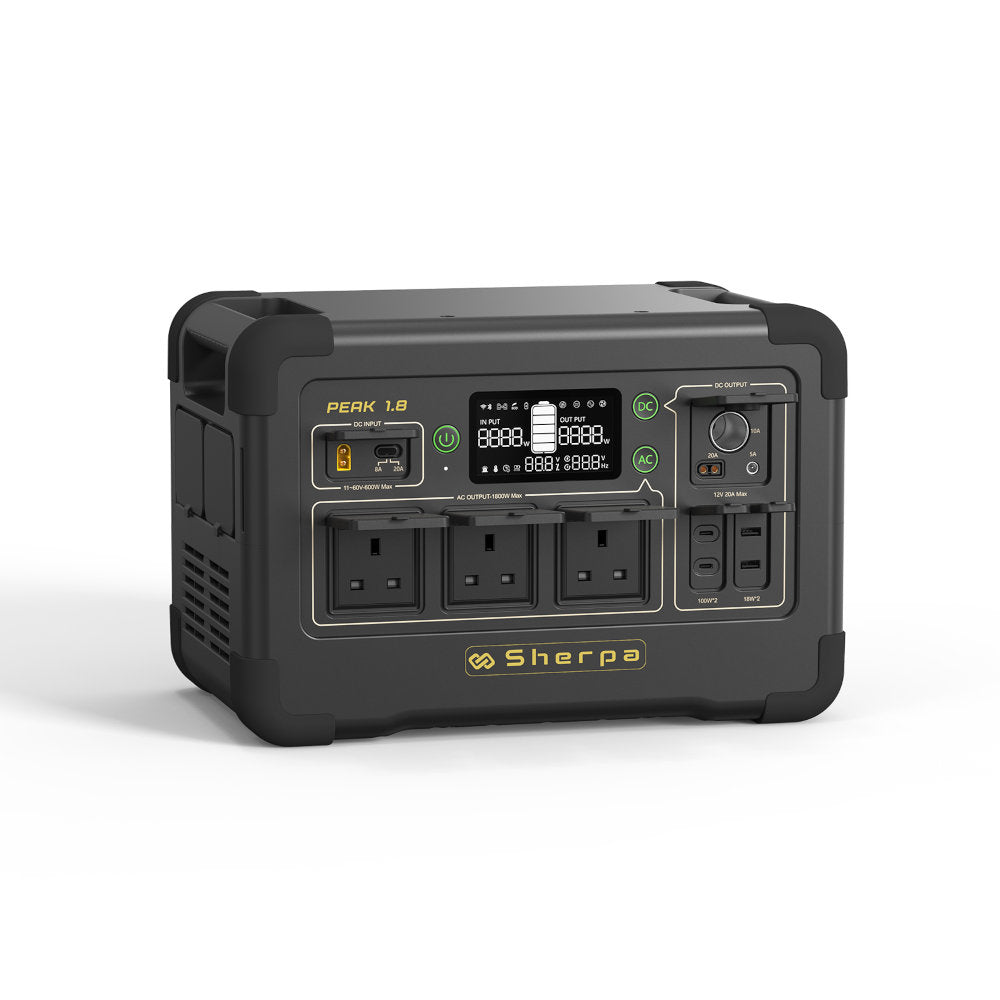

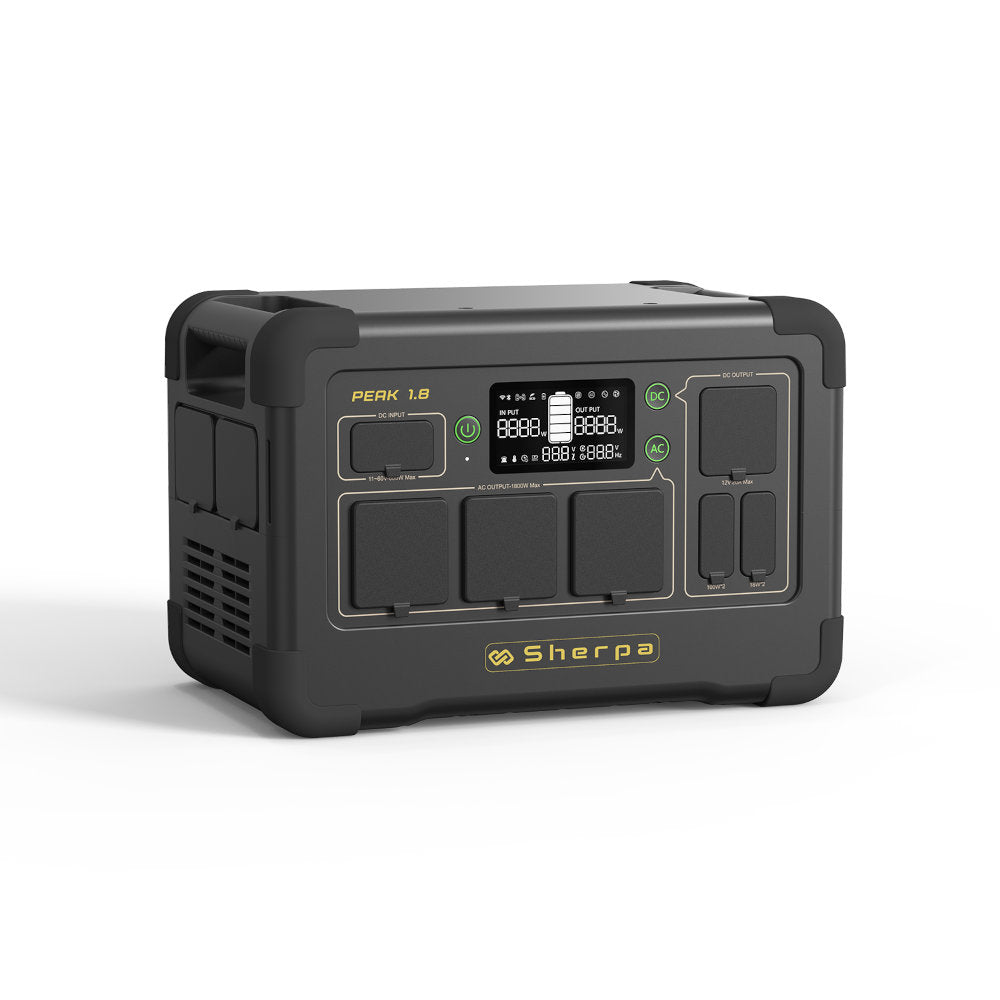

Description

The PEAK 1.8 is a versatile and powerful portable power station, delivering reliable energy wherever you go. Compact yet robust, it delivers ample power for a wide range of devices, from small electronics to higher-demand appliances. Built with a durable exterior and a user-friendly interface, the PEAK 1.8 is the ideal companion for camping, vanlife, home backup, and professional use. Its integrated MPPT charge controller allows for efficient solar charging, enabling you to harness renewable energy and stay off-grid for longer. The PEAK 1.8 is equipped with a pure sine wave inverter, capable of powering appliances and devices in situations where there is no access to mains power. It has a Backup Power Supply function, allowing your appliances to use grid power via the unit and switch over to battery power in 8-20 milliseconds in case of a power cut.

The PEAK 1.8 is powered by high-quality, automotive-grade lithium iron phosphate (LiFePO4) batteries. Renowned for their safety and longevity, these cells can be cycled 3500 times before the original capacity drops to 80%. With a capacity of 1024Wh, and optional expansion to 4096Wh, the PEAK 1.8 offers a substantial energy reserve. Its advanced Battery Management System (BMS) provides comprehensive protection against over-voltage, low-voltage, overheating, overloads, and short circuits, ensuring safe and reliable operation while maximising the lifespan of the battery. The PEAK 1.8 also features an automatic battery cell heating function, which activates when charging in temperatures below 0°C (32°F), allowing for safe and effective use in colder climates.

Boasting 10 power output ports, the PEAK 1.8 enables you to power multiple devices simultaneously:
AC OUTPUT: AC Sockets x 3 (220V-240V/50Hz) for running high-power mains appliances
DC OUTPUT: The panels comprise multiple smart-charge ports that self-regulate the power your devices need: USB-A Port x 2, USB-C Port x 2, DC 5525 Port x 1, Aux Car Port x 1 and XT60 Output x 1, allowing you to charge and power smartphones, cameras, laptops, fridges, diesel heaters, and other DC powered devices.

The PEAK 1.8 offers flexible and fast charging options to suit your situation:
AC Charging: Recharge from 0% to 100% in approximately 1.2 hours from a standard wall outlet.
Solar Charging: The built-in high-efficiency MPPT controller allows for solar charging via the XT60 port (11V-60V, up to 600W). You can achieve a full charge in around 1.7 hours with optimal solar input.
Vehicle Charging: Replenish the battery while driving using the included 12V car charging cable. For a faster charge, the optional CHARGE-500 can fully charge the unit in approximately 2 hours from a vehicle's auxiliary battery.

PEAK 1.8
AC Charging Cable
12V Car Port Charging Cable (XT60)
Solar Charging Cable (MC4 to XT60)
Accessory Pouch
User Manual

FAQs

1. What kind of battery is used in PEAK 1.8? How long it can last?
PEAK 1.8 utilises high quality UL certified automotive LiFePO4 battery cells,
it can retain 80% of its original capacity at 3500 complete charge cycles.
2. What devices can PEAK 1.8 power?
Please note that the AC output port can only power devices rated up to 1800W.
The largest DC output port is limited to 12V-20A load.
3. How to calculate the PEAK 1.8 run time?
Run Time = Total Capacity (1024Wh) x 0.85 (Depth of Discharge) / Load (Watts)
4. Does PEAK 1.8 have a built-in MPPT charge controller?
Yes, there is one independent built-in MPPT controller; XT60 port supports 11-60V (Max 600W) PV input.
5. Can the PEAK 1.8 be charged while discharging?
Yes, It can be charged and discharged at the same time. Under the non-UPS state, if uninterrupted use is
required, the average charging power must be greater than the average load power, otherwise the battery
will eventually run out and shut down.
6 How to store the PEAK 1.8?
7. Is there any other safety advice?
This product is rated IP X4 and is therefore only splash proof, not waterproof.
Pay attention to ventilation and heat dissipation when using;
ensure adequate space is made for the vent fans to dissipate internal heat when in use.
Do not use the product in environments where volatile gas may be present.

Tech Spec


Battery Info	Capacity:	1024 Wh (Depth Of Discharge 85%)
	Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
	Life Cycles:	3,500+ Cycles to 80% Original Capacity
	Maintenance:	Discharge to 30% every three months, recharge to 60%
	Management System:	MPPT Controller, BMS
	Protection:	Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery
	Discharging Temperature:	-20°C~45°C / -4°F~113°F
	Charging Temperature:	0°C~45°C / 32°F~113°F
Storage	Temperature:	20-30°C / 68°F~86°F
	Expandable Capacity:	Yes (with up to 1 × Sherpa Peak 3.0-EB > 4,096Wh)
	Warranty:	5-Year Standard Warranty
AC Output	Output Power:	1800W
	Surge:	3600W for <1s
	Outlets:	AC Sockets: 3 × 220V-240V / 50Hz
DC Output	USB-A Ports:	2 × (5V, 9V, 12V, Max 18W) Shared
	USB-C Ports:	2 × (5V, 9V, 12V, 20V, Max 100W) Shared
	DC 5525 Output:	1 × (12V-5A)
	DC XT60 Output:	1 × DC 12V-20A
	Aux Car Port:	1 × DC 12V-10A
AC Input	Input Power:	900W Max
AC Input	Inlet:	1 × AC 220V-240V
DC Input	Input Power:	600W Max
DC Input	XT60-M Input:	1 × DC (11-60V, 600W Max, 20A Max)
Recharge Times	AC Input:	1.2 Hours (0-100%)
	Solar / DC Input:	1.7 Hours (0-100%)
	Vehicle Charger (Fast):	2 Hours
	Vehicle Charger (Slow):	10 Hours
General	Operation Noise:	45 dB
	UPS Mains Switchover:	8-20ms
	APP Compatibility:	Bluetooth / Wi-Fi
	Inverter:	Pure Sine Wave
	Other Features:	Splashproof, Cold cell heating, Shockproof
Dimensions & Weight	Length (L):	378 mm
	Width (W):	239 mm
	Height (H):	255 mm
	Weight:	13.5 kg

Download Manual

PEAK 1.8
AC Charging Cable
12V Car Port Charging Cable (XT60)
Solar Charging Cable (MC4 to XT60)
Accessory Pouch
User Manual


Battery Info	Capacity:	1024 Wh (Depth Of Discharge 85%)
	Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
	Life Cycles:	3,500+ Cycles to 80% Original Capacity
	Maintenance:	Discharge to 30% every three months, recharge to 60%
	Management System:	MPPT Controller, BMS
	Protection:	Over-voltage, Low-voltage, Overheat, Overload, Short-circuit, Self-recovery
	Discharging Temperature:	-20°C~45°C / -4°F~113°F
	Charging Temperature:	0°C~45°C / 32°F~113°F
Storage	Temperature:	20-30°C / 68°F~86°F
	Expandable Capacity:	Yes (with up to 1 × Sherpa Peak 3.0-EB > 4,096Wh)
	Warranty:	5-Year Standard Warranty
AC Output	Output Power:	1800W
	Surge:	3600W for <1s
	Outlets:	AC Sockets: 3 × 220V-240V / 50Hz
DC Output	USB-A Ports:	2 × (5V, 9V, 12V, Max 18W) Shared
	USB-C Ports:	2 × (5V, 9V, 12V, 20V, Max 100W) Shared
	DC 5525 Output:	1 × (12V-5A)
	DC XT60 Output:	1 × DC 12V-20A
	Aux Car Port:	1 × DC 12V-10A
AC Input	Input Power:	900W Max
AC Input	Inlet:	1 × AC 220V-240V
DC Input	Input Power:	600W Max
DC Input	XT60-M Input:	1 × DC (11-60V, 600W Max, 20A Max)
Recharge Times	AC Input:	1.2 Hours (0-100%)
	Solar / DC Input:	1.7 Hours (0-100%)
	Vehicle Charger (Fast):	2 Hours
	Vehicle Charger (Slow):	10 Hours
General	Operation Noise:	45 dB
	UPS Mains Switchover:	8-20ms
	APP Compatibility:	Bluetooth / Wi-Fi
	Inverter:	Pure Sine Wave
	Other Features:	Splashproof, Cold cell heating, Shockproof
Dimensions & Weight	Length (L):	378 mm
	Width (W):	239 mm
	Height (H):	255 mm
	Weight:	13.5 kg

Product Comparison

Sherpa PEAK 1.8

£599.00

£699.00

View

Sherpa PEAK 0.6

£299.00

£379.00

View

Sherpa PEAK 2.2

£999.00

£1,199.00

View

Sherpa PEAK 1.8

£599.00

£699.00

View

Sherpa PEAK 0.6

£299.00

£379.00

View

Sherpa PEAK 2.2

£999.00

£1,199.00

View

Battery

1024Wh ~ 80Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

576Wh ~ 45Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

1536Wh ~ 120Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

Output (AC)

1800W Continuous Pure Sine Wave
(Surge: 3600W)

600W Continuous Pure Sine Wave
(Surge: 1200W)

2200W Continuous Pure Sine Wave
(Surge: 4400W)

Output (DC)

20A - 280W Max

10A - 120W Max

30A - 360W Max

Input (AC)

220V-240V 900W Max

220V-240V 500W Max

220V-240V 1400W Max

Input (Solar / DC)

11V-60V, 600W Max

12V-28V / 100W Max
5V-20V / 100W Max

32V-95V, 700W Max
12V-18V, 100W Max

Endless Applications

Coffee Machine

1 hour

CPAP

48 hours

Cordless Battery Charging

20 charges

Diesel Heater

40 hours

Camping Fridge

Up to 80 hours

Travel Kettle

1.2 hours
