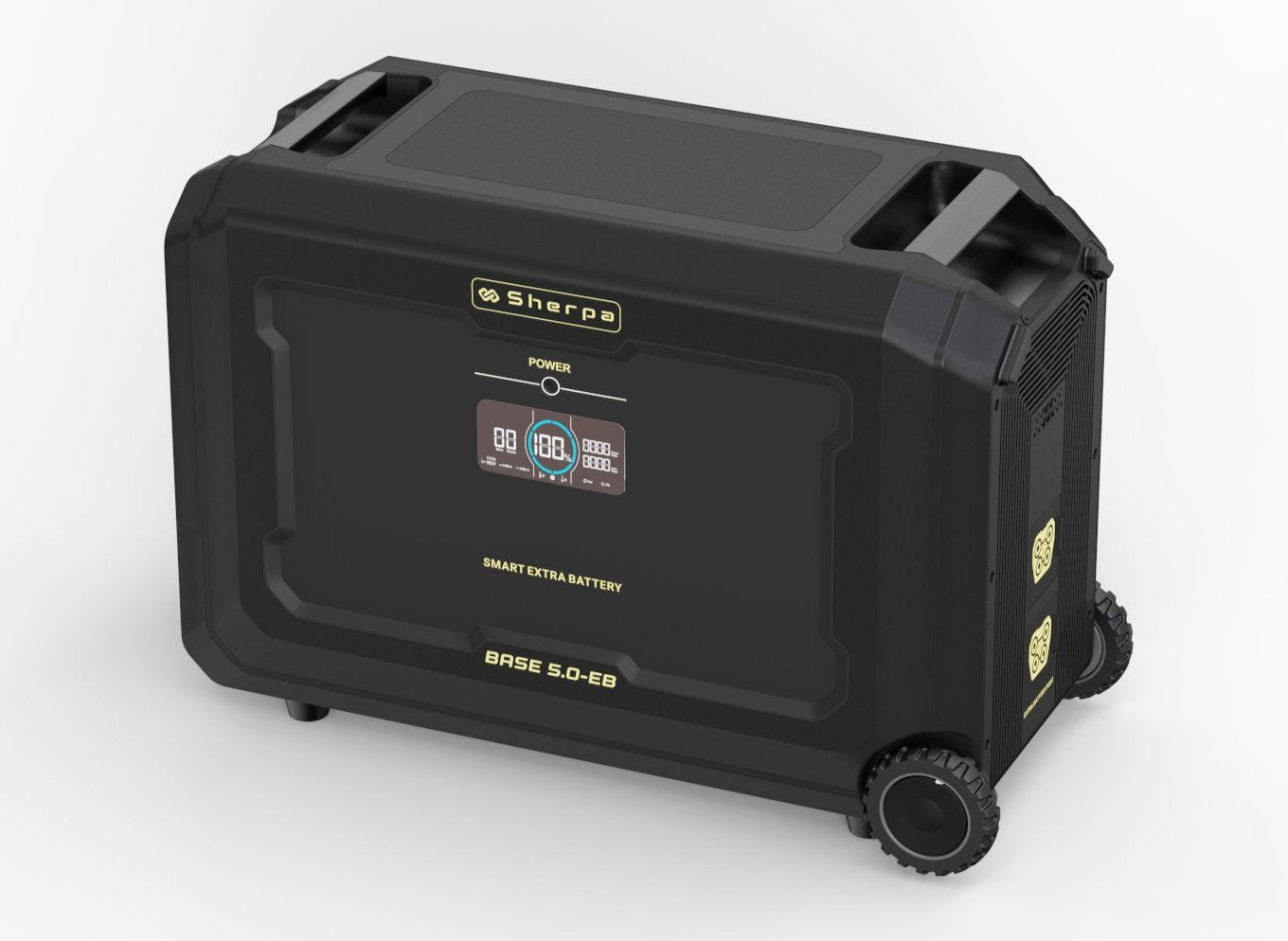

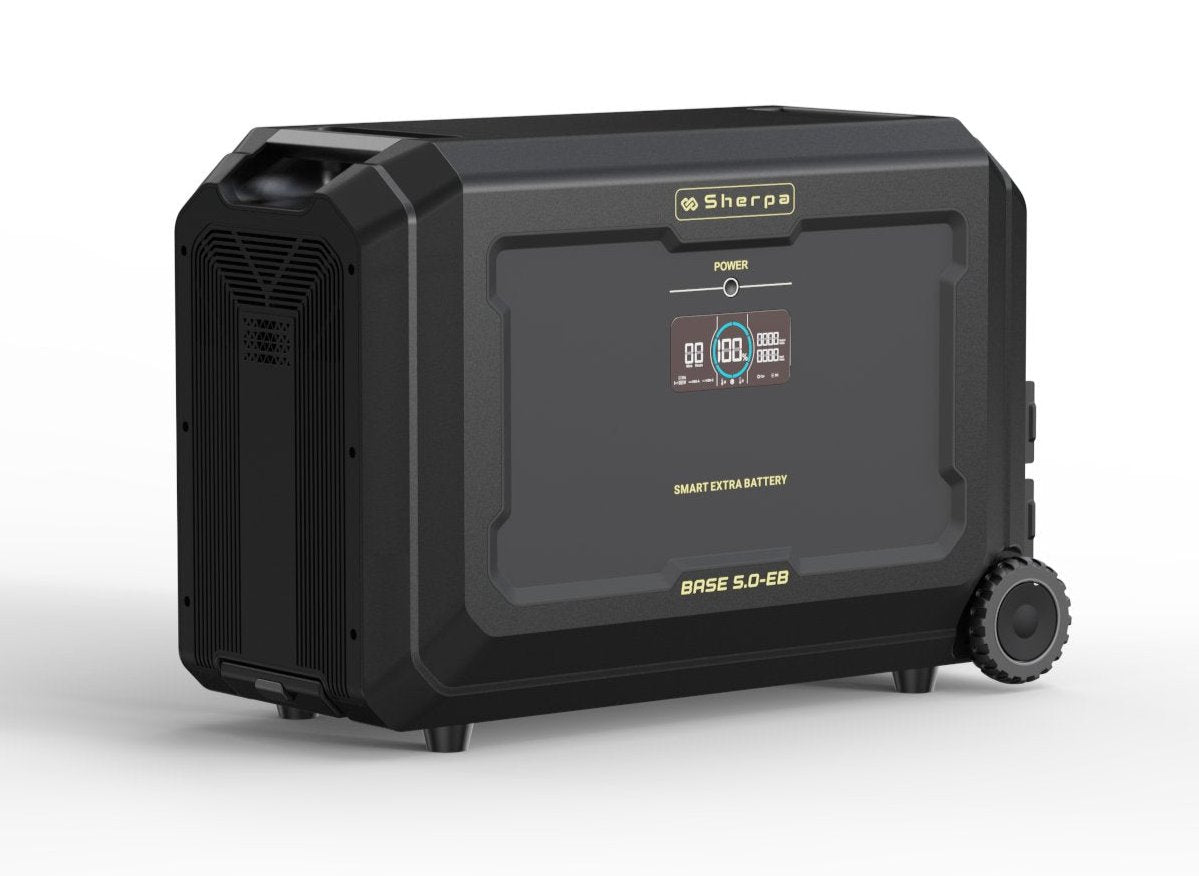

Right-front perspective shot of smart battery module in black and gold design, featuring LCD display and power button

Right-left perspective shot of smart extra battery module, featuring expansion ports and mobility wheels and rubber feet

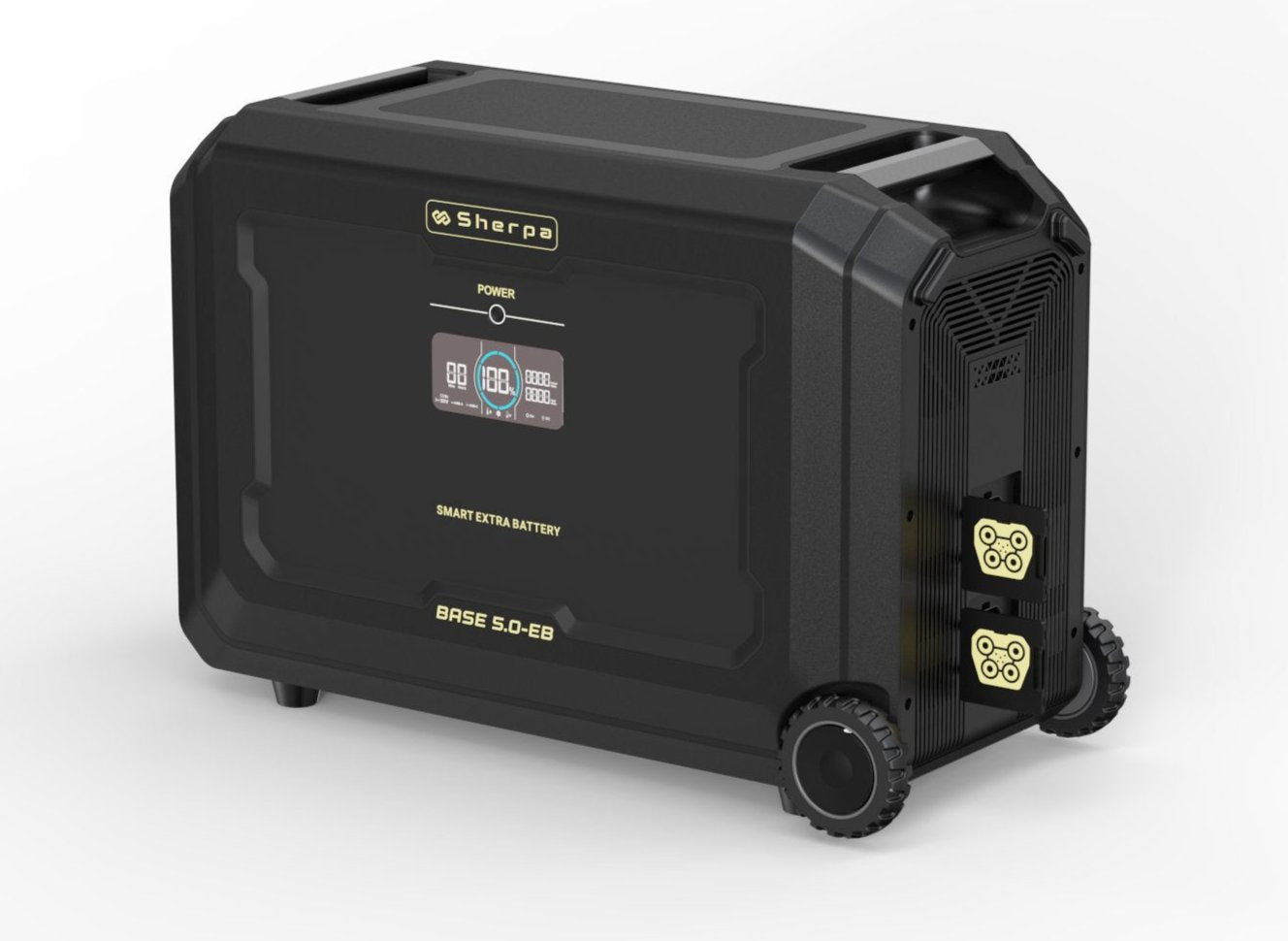

Overhead perspective shot of smart extra battery unit, featuring expansion ports and mobility wheels and LCD display

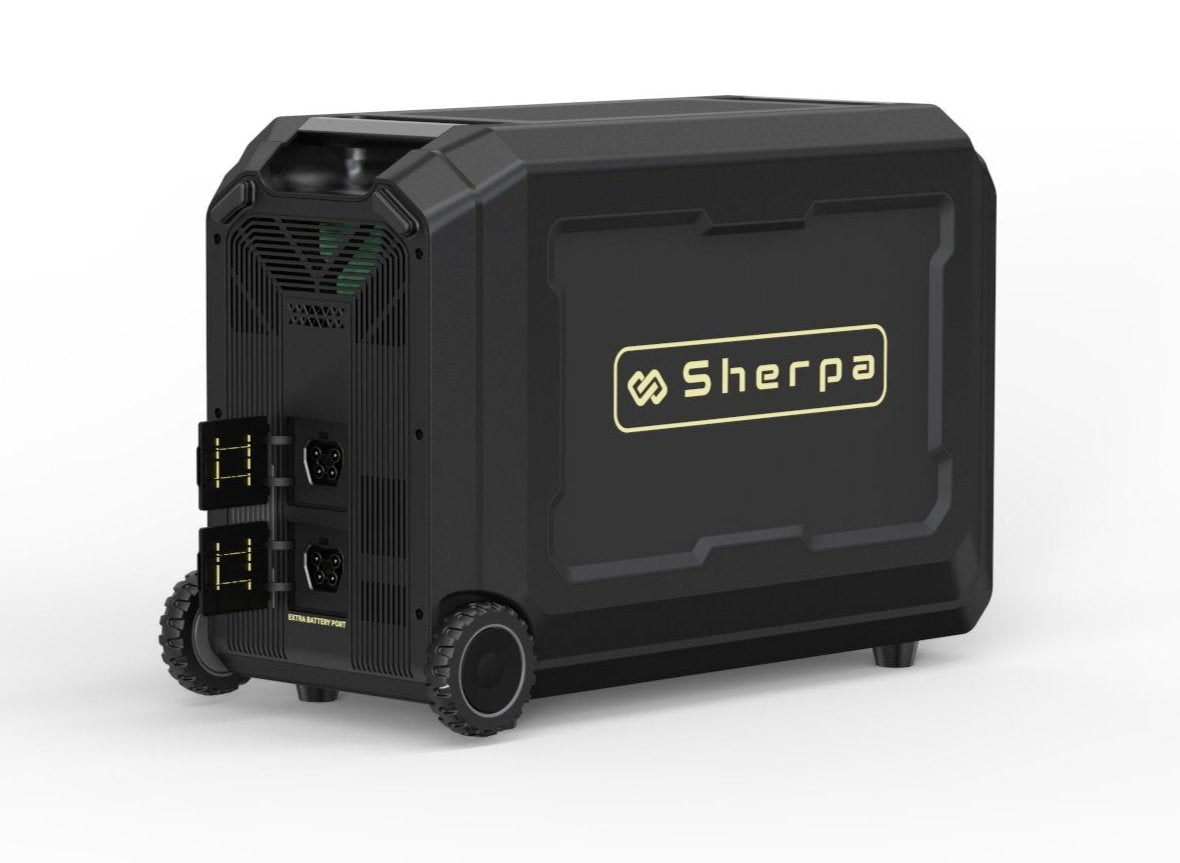

Left-rear view of capacity expansion battery, featuring open link port covers, movability wheels and top lift handle

Rear-right view of portable battery unit, featuring transportation wheels, retractable pull handle and rubber feet

Sherpa BASE 5.0-Extra Battery

Name: Sherpa BASE 5.0-Extra Battery
Brand: Sherpa Power
SKU: SP-KE5040BA-EB
Price: 2349.0 GBP
Availability: InStock

£2,349.00

£2,599.00

Save £250.00

Quantity:

5 Year Warranty Included!

Your purchase is completely protected by our 5 year warranty.

Order today to get yours by: ~ - ~

Use any of these payment methods:

Key Features

🔋 Battery
5040Wh ~ 400Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

⚡ Output (AC)
Not available

💡 Output (DC)
Not available

🔌 Input (AC)
(Available via linked host unit only)

Input (🔆 Solar/ ⚡🔌 DC )
(Available via linked host unit only)

⏳ Charge Time
Mains (AC): 1.8 hours
Solar (DC): 2.5 hours
(Both apply when linked to host unit)

🛡️ Warranty 5 Year Standard Warranty

⚖ Weight 44Kg

🔗 Expandable Capacity
Up to 30,240Wh ~ 2360Ah (based on a 12.8V calculation)

Sherpa BASE 5.0-Extra Battery

£2,349.00

£2,599.00

Description

The BASE 5.0-EB is a user-friendly, high capacity Smart Expansion Battery, designed to add energy
storage capacity to your system. Equipped to accept significant solar and hybrid renewable inputs,
you can charge your devices and deliver clean and efficient power. Designed for large expandable
capacity, the BASE 5.0-EB is built for off-grid living and home backup use. The easy link up
system allows you to combine up to 15 units for massive energy storage!

The BASE 5.0-EB Portable Extra Battery incorporates an automotive grade, high-quality lithium iron phosphate battery (LiFePO4), which can be cycled 3500 times before its original capacity is reduced to 80%. Having a capacity of 5048Wh, expandable up to a massive 80,640Wh by linking fifteen to the BASE 5.0, the system offers a significant energy reserve for extended periods of uninterrupted power. The BASE 5.0-EB safeguards overheating and low charge. These limit deep discharge to preserve the longevity of the battery.

The BASE 5.0-EB has two link ports to add an Extra Battery and a BASE 5.0 host unit. This
allows charge and discharge power sharing once the linked units have balanced.

The BASE 5.0-EB will only charge when linked to the BASE 5.0 host.
AC Charging: approximately 3.5 hours from 0% to 100% when connected to a BASE 5.0 host unit, plugged into mains or maximum solar input. The host unit will feed charge to the BASE 5.0-EB via the link cable, whichever method of charge you use.

Items included:
1 x BASE 5.0-EB
1 x Link Cable (50cm cable or 80cm including connectors)
User Manual

FAQs

1. Which Portable Power Stations are compatible with Sherpa BASE 5.0-EB?
It is able to be linked to the BASE 5.0 or PRO 5.0 models.

2. How do I calculate the BASE 5.0-EB run time?
Runtime is calculated for you and is shown on the display screen at any time you have a device drawing power.
General equation for run time = Total Capacity (5040Wh) x 0.85 (Depth of Discharge) / Load (Device rated power-Watts)

3. Can the BASE 5.0-EB be charged while discharging?
Yes, while linked to a host unit, it can be charged and discharged simultaneously by mains or DC power.

4. How should the BASE 5.0-EB be stored?
Please turn off the unit and store it in a dry, ventilated place at normal room temperature. Do not place
this unit near water sources or a wet/moist environment. For long-term storage, it is recommended to
discharge the battery to 30% every three months and recharge it to 60% to sustain the battery life.

5. Is there any other safety advice?
• This product is IP-rated 21 and is therefore NOT waterproof.
• Pay attention to ventilation and heat dissipation when in use.
• Ensure adequate space for the vent fans to dissipate internal heat when in use.
• Do not use the product in environments where volatile gas may be present.
• When cleaning the product, wipe it with a dry, soft, clean cloth.

6. Can this product be transported by plane?
No, it is classed as dangerous goods and must be shipped by sea and
land only.

7. Is the actual useable capacity of the product consistent with the capacity
stated in the user manual?
All batteries reserve some capacity to prevent them from permanent damage by deep discharge. The actual usable capacity of the BASE 5.0-EB is therefore lower than the capacity specified in the user manual by approximately 15% so you can use up to 85%.

8. What is the storage capacity of the BASE 5.0-EB?
The BASE 5.0-EB has a rated capacity of 5040Wh and a useable capacity of approximately 4,284Wh.

9. Does the BASE 5.0-EB support an Extra Battery scalability?
Yes, up to 15 extra battery modules can be linked to the BASE 5.0 to achieve up to 80,640Wh capacity.

10. Does BASE 5.0-EB have a built-in MPPT charge controller?
No, it utilises the built-in MPPT controller of its host so you need to connect it to the host to benefit from renewable charging.

11. How does the BASE 5.0-EB charge?
The BASE 5.0-EB takes energy from its host unit such as the BASE 5.0 once it is linked up. When both are activated, they balance out their charge levels.

Tech Spec

Battery Info
Capacity:	5040 Wh (Depth Of Discharge 85%)
Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
Life Cycles:	3,500+ Cycles to 80% Original Capacity
Shelf-life:	Discharge the battery to 30% every three months and recharge it to 60%
Management System:	BMS
Protection:	Over-voltage, Low-voltage, Overheat, Overload
WorkingTemperature:	0°C~45°C/32°F~113°F
Storage Temperature:	20-30°C/68°F~86°F
DC Output
Outlets:	Link Port x 2
DC Input Power:	700W Max when charging via the BASE 5.0 host
Recharge Times
AC Input:	1.8 hours
Solar / DC Input:	2.5 hours
Vehicle Charger (fast):	3.5 hours
Vehicle Charger (slow):	Not specified
General
IP Rating:	21
APP Compatible:	When linked to BASE 5.0 host
Expandable Capacity:	Yes (up to 15 x Sherpa BASE 5.0-EB to the BASE 5.0 host)
Warranty:	5-year Standard Warranty
Dimensions & Weight
Length (L):	642mm
Width (W):	305mm
Height (H):	438mm
Weight:	44Kg

Download Manual

Reviews

The BASE 5.0-EB has two link ports to add an Extra Battery and a BASE 5.0 host unit. This
allows charge and discharge power sharing once the linked units have balanced.

Items included:
1 x BASE 5.0-EB
1 x Link Cable (50cm cable or 80cm including connectors)
User Manual

Battery Info
Capacity:	5040 Wh (Depth Of Discharge 85%)
Chemistry:	LiFePO₄ (Lithium Iron Phosphate)
Life Cycles:	3,500+ Cycles to 80% Original Capacity
Shelf-life:	Discharge the battery to 30% every three months and recharge it to 60%
Management System:	BMS
Protection:	Over-voltage, Low-voltage, Overheat, Overload
WorkingTemperature:	0°C~45°C/32°F~113°F
Storage Temperature:	20-30°C/68°F~86°F
DC Output
Outlets:	Link Port x 2
DC Input Power:	700W Max when charging via the BASE 5.0 host
Recharge Times
AC Input:	1.8 hours
Solar / DC Input:	2.5 hours
Vehicle Charger (fast):	3.5 hours
Vehicle Charger (slow):	Not specified
General
IP Rating:	21
APP Compatible:	When linked to BASE 5.0 host
Expandable Capacity:	Yes (up to 15 x Sherpa BASE 5.0-EB to the BASE 5.0 host)
Warranty:	5-year Standard Warranty
Dimensions & Weight
Length (L):	642mm
Width (W):	305mm
Height (H):	438mm
Weight:	44Kg

Product Comparison

Sherpa BASE 5.0-Extra Battery

£2,349.00

£2,599.00

View

Right front shot of smart battery module in black and gold design featuring expansion ports and DC outputs

Sherpa BASE 2.0-Extra Battery - Sold Out

£1,199.00

View

Sherpa BASE 5.0-Extra Battery

£2,349.00

£2,599.00

View

Sherpa BASE 2.0-Extra Battery - Sold Out

£1,199.00

View

Battery

5040Wh ~ 400Ah capacity, LFP cells with 3500 cycles or 10+ year life
(Based on daily use from 100-0%, after which the capacity will be 80% and still usable)

Capacity: 2048Wh LiFePO4, 3500 cycles to 80% capacity

Output (AC)

Not available

Output (DC)

Not available

30A - 360W Max

Input (AC)

(Available via linked host unit only)

Input (Solar / DC)

(Available via linked host unit only)

12-150V 2100W Max

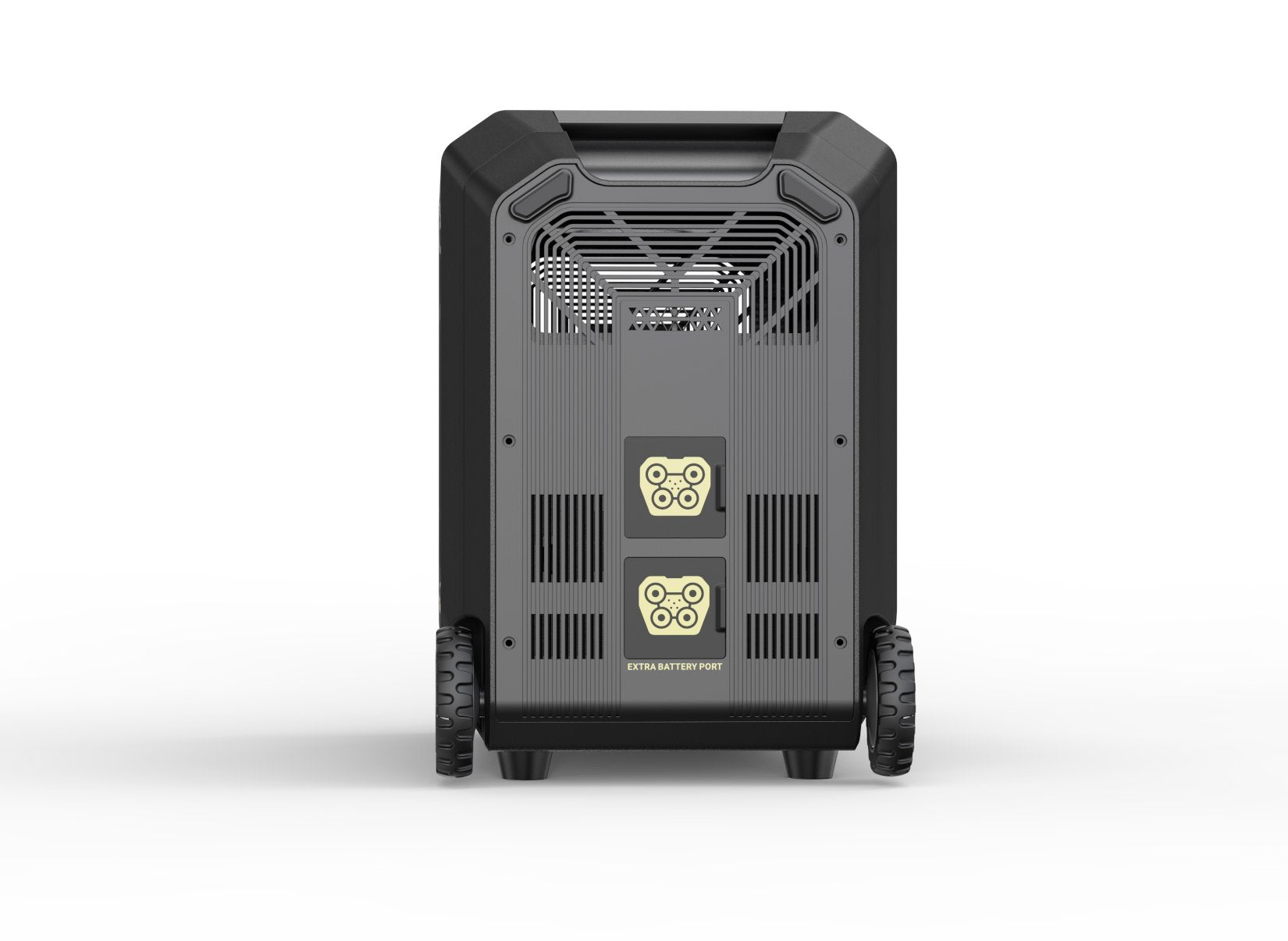

The expandable capacity ports shown on the side panel of the BASE 5000W

Tank up

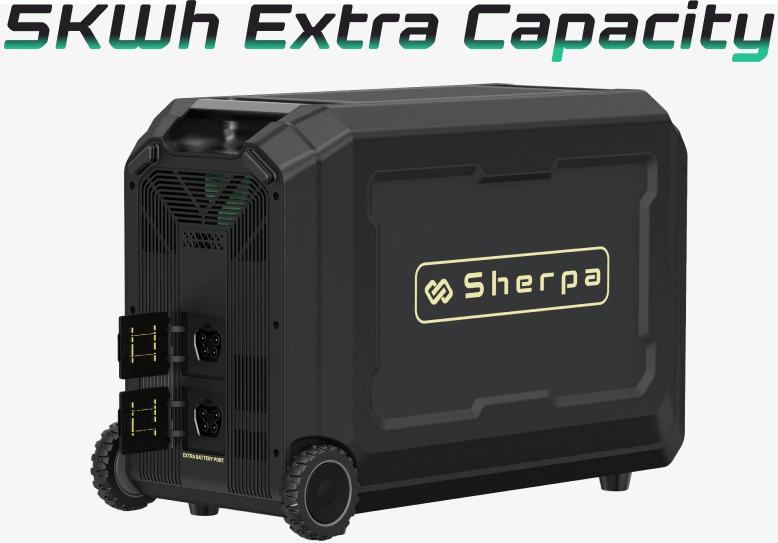

Add 5KWh modules for your extra energy storage needs; simple to plug up and use.

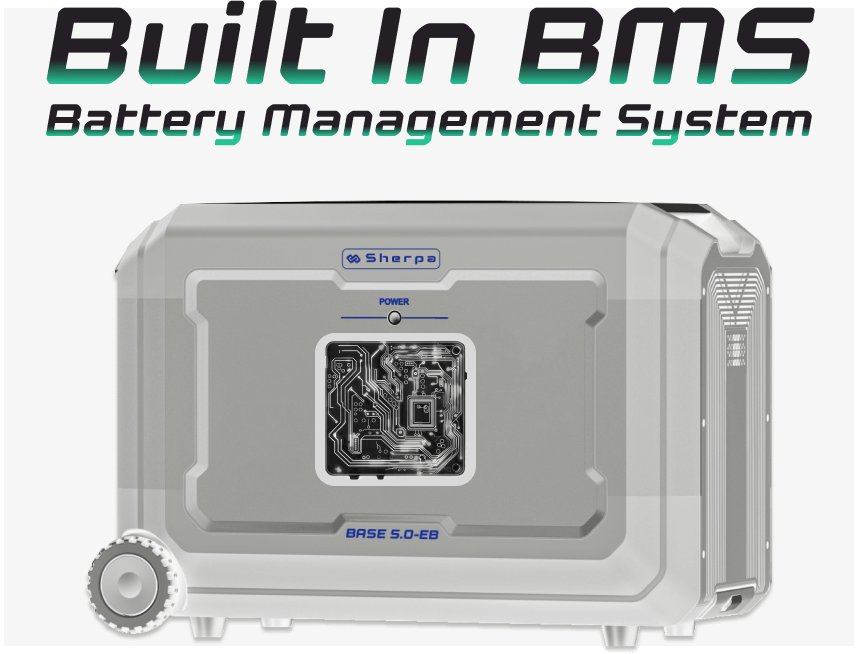

stylized image of the BASE 5 Extra Battery displaying a circuit board in the centre

Mobile and Fluent

Built-in mobility design with smart screen and battery management system.
